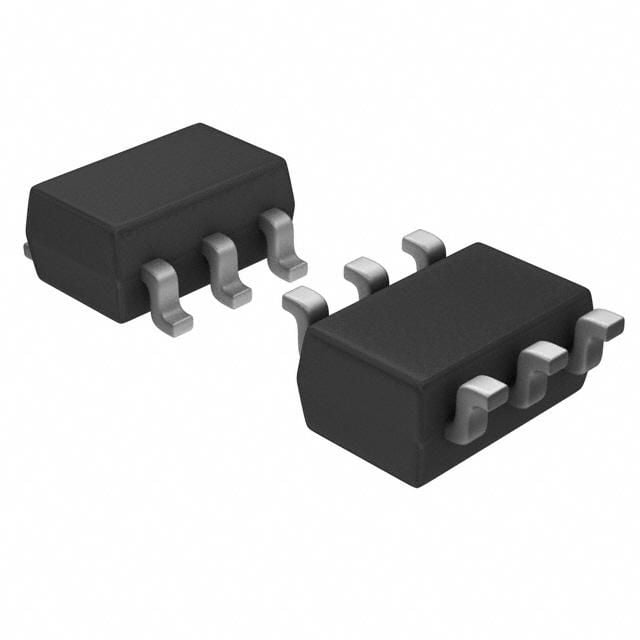

ADA4851-1YRJZ-RL7
(0) Yorum - 0 Puan
154,73 TL
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | High Speed Operational Amplifiers |
| RoHS: | Details |
| ADA4851-1 | |
| 1 Channel | |
| 70 MHz | |
| 375 V/us | |
| 107 dB | |
| 105 dB | |
| 66 mA | |
| 3.9 uA | |
| 600 uV | |
| 12 V | |
| 2.7 V | |
| 2.5 mA | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SOT-23-6 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Amplifier Type: | Voltage Feedback |
| Brand: | Analog Devices |
| en - Input Voltage Noise Density: | 10 nV/sqrt Hz |
| Height: | 1.45 mm |
| Length: | 2.9 mm |
| Maximum Dual Supply Voltage: | +/- 6 V |
| Minimum Dual Supply Voltage: | +/- 1.35 V |
| Operating Supply Voltage: | 2.7 V to 12 V |
| Output Type: | Rail-to-Rail |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - High Speed Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 101 dB |
| Settling Time: | 55 ns |
| Shutdown: | No Shutdown |
| 3000 | |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Topology: | Voltage Feedback |
| Width: | 1.6 mm |
