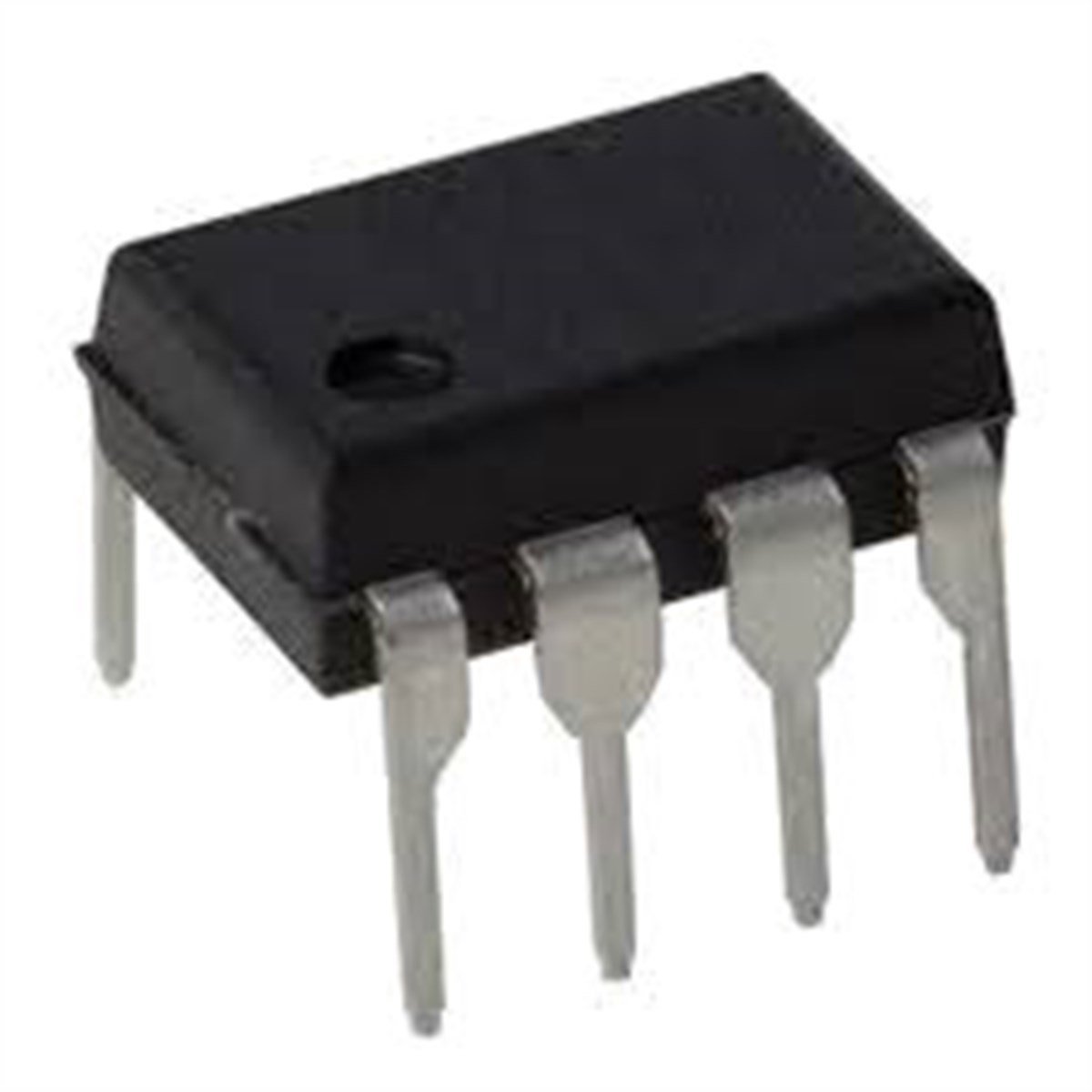

HCPL2232 (A2232)
(0) Yorum - 0 Puan
261,24 TL
CategoriesIsolators
Optoisolators - Logic Output
ManufacturerBroadcom Limited
Series-
Packaging ?Tube ?
Part StatusActive
Number of Channels2
Inputs - Side 1/Side 22/0
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)10kV/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel25mA
Data Rate5MBd
Propagation Delay tpLH / tpHL (Max)300ns, 300ns
Rise / Fall Time (Typ)30ns, 7ns
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)10mA
Voltage - Supply4.5V ~ 20V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
