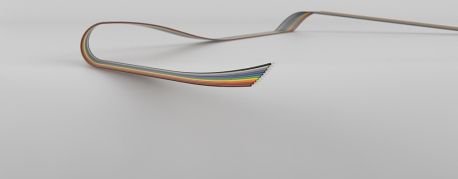

1.27mm 10 Lu Renkli Flat Kablo (1 Metre Fiyatı) 05A06910
44,19 TL
Kategori
Marka
Dorukan Stok No
FBK28-10
Fiyat
0,75 EUR + KDV
| Features |
| Double extruding strip cable, solid tinned copper wire AWG28 (0,09mm2), pitch 1,27mm, rainbow, PVC insulation, self-extinguishing, colour sequence according to IEC |
 |
| Technical Specifications |
|
|
| Temperature Range: |
-20...+80°C |
| Rated Voltage: |
300V |
| Rated Current: |
1A |
| Test Voltage: |
2000V |
| Insulation Resistance: |
>20MW*km |
| Capacitance (@1MHz): |
53pF/m |
| Impedance: |
108W |
| Crosstalk, Near (@1MHz): |
33dB |
| Crosstalk, Far (@1MHz): |
45dB |
|
|
| Approvals |
 2480 |
