SPPB110300 10 Adet (0.42 USD)
194,76 TL
Kategori
Marka
Dorukan Stok No
0005250337_2
Fiyat
4,20 USD + KDV
Havale
188,91 TL
(%3,00 havale indirimi)

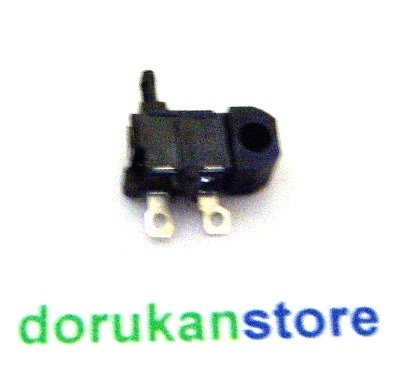

General-purpose Type SPPB Series
Detail
| Part number | SPPB110300 | |
| Operating direction | Horizontal | |
| Poles | 1 | |
| Positions | 1 | |
| Operation part shape | Push | |
| Terminal type | For Lead | |
| Operating force | 0.35N max. | |
| Packaging style | Bulk | |
| Operating temperature range | -40℃ to +85℃ | |
| Rating (max.)/(min.) (Resistive load) | 0.1A 30V DC/50μA 3V DC | |
| Electrical performance | Contact resistance（Initial/After operating life） | 1Ω max./2Ω max. |
| Insulation resistance | 100MΩ min. 100V DC | |
| Voltage proof | 100V AC for 1 minute | |
| Mechanical performance | Terminal strength | 3N for 1 minute |
| Actuator strength | 10N | |
| Durability | Operating life without load | 50,000 cycles 2Ω max. |
| Operating life with load Rating（max.）（Resistive load） | 50,000 cycles 2Ω max. | |
| Environmental performance | Cold | -40±2℃ for 500h |
| Dry heat | 85±2℃ for 500h | |
| Damp heat | 60±2℃, 90 to 95%RH for 500h | |
| Minimum order unit (pcs.) | Japan | 100 |
| Export | 10,000 |
| 3D CAD (STEP) | |
| Certificate of Compliance to RoHS regulations |
Dimensions
Mounting Hole Dimensions
|
Circuit Diagram
