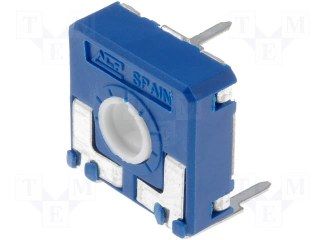

10K KOMBİ TRİMPOTU
17,82 TL
Kategori
Marka
Dorukan Stok No
DRK-2303-5
Fiyat
0,35 USD + KDV
Havale
17,29 TL
(%3,00 havale indirimi)
| Features |
| • Plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer) • Resistant against humidity and corrosion • Fully sealed housing, dust and colophony proof, protected against harmful influences • Metal parts made from non-ferrous metal which prevents oxidation and increases solderability • Excellent contact between connectors and substrate, reduces contact resistance • Used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94 • Very soft, smooth movement of the wiper over the track • Rectangular form allows automatic use • Dual mid position contact wiper • Pointer position readable on scalar |
 |
| Electrical Specifications |
|
|
| Taper: |
Linear, According to DIN 41450-1-4-5 |
| Power Rating (TU = 40°C): |
0,25W |
| Operating Voltage, Max.: |
250V |
| Resistance Tolerance |
|
| 100W...1MW: |
±20% |
| >1MW...5MW: |
±30% |
| Residual Resistance (Lin): |
£5x10-3W or 2W |
| Temperature Range: |
-25°...+70°C |
|
|
| Mechanical Specifications |
|
|
| Rotation |
|
| Mechanical: |
265 ±5° |
| Electrical: |
245 ±20° |
| Torque (= Operating Force): |
0,5...2,5Ncm |
| Residual Resistance, Max.: |
10Ncm |
|
|
| Dimensions |
|
|
| Width x Height: |
14,0x14,0mm |
| Pitch: |
10,0x12,5mm |
| Necessary Hole (Ø): |
1,3mm |
|
|
