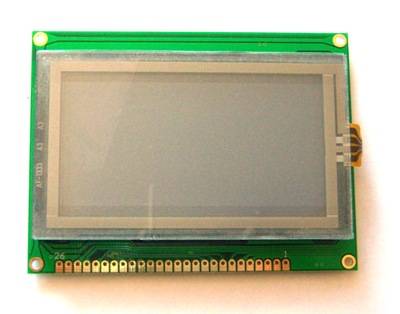

128x64 White/Blue LCD Grafik Modül + Touch Panel (DEM128064ASBH-PW-N RoHS)
2.034,21 TL
Kategori
Marka
Dorukan Stok No
DRK-34YENİRAF,..
Fiyat
35,00 EUR + KDV
Havale
1.973,18 TL
(%3,00 havale indirimi)
LCD-Graphicm+Touch Panel 71,7x39,0mm 128x64 Blue
|
Technical Specifications
|
|
• High contrast LCD-STN display blue negative
• White LED backlight • Suitable analogTouch Panel included • Interface for 8-Bit data bus • Supply voltage, typ. +5,0V • Operating temperature range -20...+70°C |
 |
|
|
|
|
|
|
|
DEM_
|
Type
|
Format
|
V-Area
|
LxWxD
|
|
|
|
[HxV]
|
[mm]
|
[mm]
|
|
128064ASBH_
|
STN
|
128x64
|
71,7x39,0
|
93x70x14,3
|
|
240128DSBH_
|
STN
|
240x128
|
114,0x64,0
|
144x104x15,6
|
|
STN = Super Twisted Nematic, H = Horizontal (Pixel), V = Vertical (Pixel), V-Area = Viewing Area
|
||||
|
|
||||
|
|
|
|
|
|
|
DEM_
|
P-Size
|
Backl
|
B-Colour
|
Tamb
|
|
|
[mm]
|
|
|
[°C]
|
|
128064ASBH_
|
0,48x0,48
|
LED
|
White (neg.)
|
-20...+70
|
|
240128DSBH_
|
0,40x0,40
|
LED
|
White (neg.)
|
-20...+70
|
|
P-Size = Pixel Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature
|
||||
