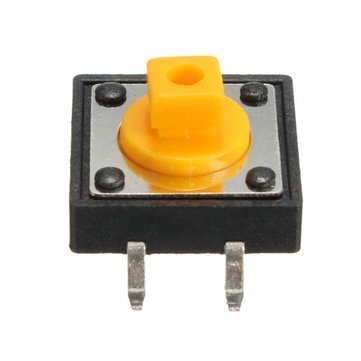

12x12mm h:7.3 Tact Switch (DTS-24R-V RoHS)
7,64 TL
Kategori
Marka
Dorukan Stok No
DRK-3048
Fiyat
0,15 USD + KDV
Havale
7,41 TL
(%3,00 havale indirimi)
|
Technical Specifications |
 |
|
| Switching Voltage, Max.: |
12V DC |
| Switching Current, Max.: |
50mA |
| Test Voltage, 1min.: |
250V AC |
| Operating Life with Switching Capacity: |
100,000 Operations |
| Contact Resistance, Max.: |
100mW |
| Insulation Resistance, Min.: |
100MW/500V DC |
| Switching Type: |
1 NO Contact |
| Operating Force: |
2,6N |
| Operating Path: |
0,35mm +0,2, -0,1 |
| Insulation Material: |
Thermoplastic Nylon, UL94V-0 |
| Contact Surface: |
Bronze, Silver-plated |
| Solder Temperature and Duration, Max.: |
260°C for 5s |
| Operating Temperature: |
-25...+70°C |
|
|
| Dimensions |
| Part Nr. |
H |
|
| [mm] |
||
| DTS24N | 7,3 ± 0,2 |
