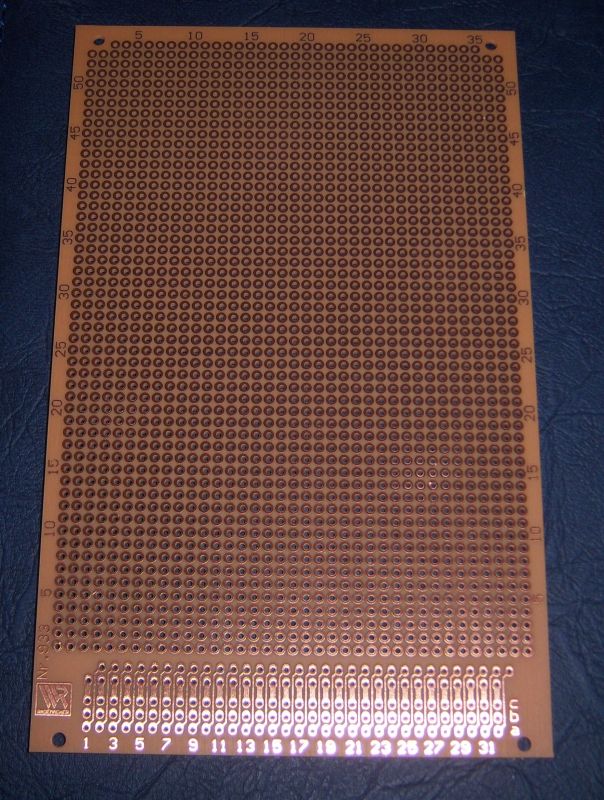

160x100mm Data Electronics HP (UP933HP)
182,65 TL
Kategori
Marka
Dorukan Stok No
ACDHJPPY
Fiyat
3,10 EUR + KDV
Havale
177,17 TL
(%3,00 havale indirimi)
Features
With rear position print
Material: Laminated Paper
Hole sequence: 37
Multi-point connector and mounting holes for 32-/64-/96-pin socket DIN 41612
| • Test boards with Cu layer made of Laminated Paper or Epoxy resin glass fabric • For electronic professions in accordance with IHK regulations |
 |
| Technical Specifications |
|
|
| Dimensions: |
160x100mm |
| Pitch: |
2,54mm |
| Holes Ø: |
1mm |
| Cu Layer: |
35µm |
| Material Thickness: |
1,5mm |
| UP933HP |
| Strip Pitch, Cu single-sided, Test Boards for Electronic Communications, Information Technology |
|
Material: Laminated Paper
Hole sequence: 37
Multi-point connector and mounting holes for 32-/64-/96-pin socket DIN 41612
Bu ürüne ilk yorumu siz yapın!
