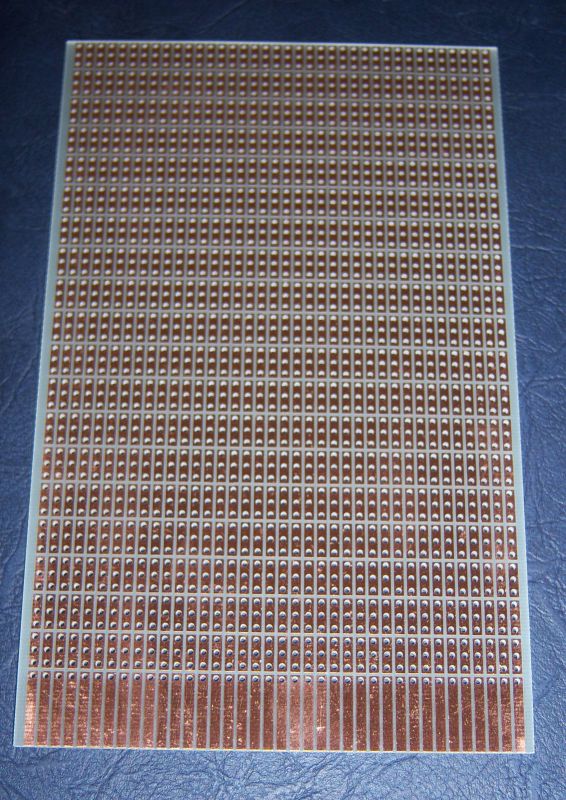

160x100mm Euro Board IC EP (UP946EP)
273,28 TL
Kategori
Marka
Dorukan Stok No
DEMPRJX8
Fiyat
4,70 EUR + KDV
Havale
265,08 TL
(%3,00 havale indirimi)
Features
Dot matrix in triple groups makes IC building easier
Material: Epoxy
Socket: 39-pin, direct, pitch: 2,54mm
| • Drilled boards with Cu layer made of laminated paper or epoxy resin glass fabric • For building and testing circuit solutions, ideal for small series • With earthing strips for sockets |
 |
| Technical Specifications |
|
|
| Dimensions: |
160x100mm |
| UP911HP: |
50x110mm |
| Pitch: |
2,54mm |
| Holes Ø: |
1mm |
| Cu Layer: |
35µm |
| Material Thickness: |
1,5mm |
| UP946EP |
| Experimenter Board, Dot Matrix, Cu single-sided |
|
Material: Epoxy
Socket: 39-pin, direct, pitch: 2,54mm
Bu ürüne ilk yorumu siz yapın!
