2 Pin 5mm H:10mm 250V Siyah Terminal Blok (AK500/2DS-5.0-V-G) ARK500/2)
11,78 TL
| Technical Specifications |
 |
|
| Rated Voltage (EN 60998): |
250V |
| Rated Current (T60): |
17,5A |
| Test Voltage: |
2kV |
| Rated Cross Section Single Stranded Wire: |
1,5mm2 |
| Rated Cross Section Fine Stranded Wire: |
1,5mm2 |
| Stripped Length: |
6,0mm |
| Insulating Material: |
PA |
| Temperature Range: |
-30°C...+105°C |
| Flammability Class: |
UL94V-0 |
|

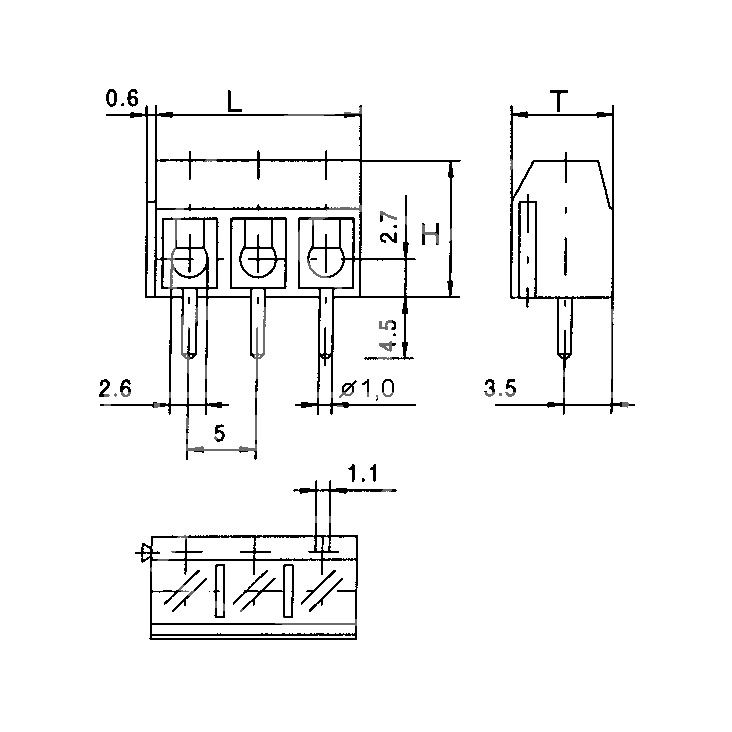

Dimensions |
| Part Nr. |
L |
H |
T |
| [mm] |
|||
| ARK500/2 | 10,0 |
10,0 |
7,5 |
| ARK500/3 | 15,0 |
10,0 |
7,5 |
|
|||
| Approvals |
 EN 60998,  1059,  |
