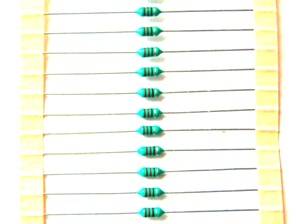

220uH 130mA Direnç Tipi Bobin (EC24-221K RoHS)
3,54 TL
Marka
Dorukan Stok No
DRK-2262-2
Fiyat
0,06 EUR + KDV
Havale
3,43 TL
(%3,00 havale indirimi)
| Technical Specifications |
 |
|
| Temperature Range: |
-20...+100°C |
| Dielectric Strength: |
250Vrms |
| Inductance (DL): |
±10% |
|
|
| Part Nr. |
L |
Q |
fQ |
f |
RDC |
IN |
| [µH] |
[MHz] |
[MHz] |
[W] |
[mA] |
||
| EC24-1R0K | 1,0 |
40 |
25,2 |
135,0 |
0,18 |
815 |
| EC24-2R2K | 2,2 |
40 |
7,96 |
80,0 |
0,25 |
630 |
| EC24-3R3K | 3,3 |
40 |
7,96 |
70,0 |
0,30 |
575 |
| EC24-4R7K | 4,7 |
40 |
7,96 |
45,0 |
0,35 |
530 |
| EC24-6R8K | 6,8 |
40 |
7,96 |
30,0 |
0,45 |
470 |
| EC24-100K | 10 |
40 |
7,96 |
22,0 |
0,72 |
370 |
| EC24-150K | 15 |
40 |
2,52 |
16,0 |
0,88 |
335 |
| EC24-220K | 22 |
40 |
2,52 |
13,0 |
1,2 |
285 |
| EC24-330K | 33 |
40 |
2,52 |
10,0 |
1,5 |
255 |
| EC24-470K | 47 |
50 |
2,52 |
8,5 |
2,3 |
205 |
| EC24-680K | 68 |
50 |
2,52 |
6,5 |
2,9 |
185 |
| EC24-101K | 100 |
50 |
2,52 |
5,5 |
3,7 |
165 |
| EC24-151K | 150 |
60 |
0,796 |
4,75 |
4,9 |
150 |
| EC24-221K | 220 |
60 |
0,796 |
4,0 |
6,5 |
130 |
| EC24-331K | 330 |
60 |
0,796 |
3,4 |
9,5 |
100 |
| EC24-471K | 470 |
60 |
0,796 |
2,56 |
17,5 |
90 |
| EC24-681K | 680 |
60 |
0,796 |
2,0 |
20,0 |
75 |
| EC24-102K | 1000 |
50 |
0,796 |
1,15 |
30,0 |
60 |
| L = Inductance, Q = Quality Class, Min., fQ = Testing Frequency of L and Q, f = Resonance Frequency, Min., RDC = DC Resistance, Max., IN = Rated DC Current |
||||||
|
||||||
| Colour Code |
| Colour Code |
Number |
Multiplier |
Tolerance |
| [%] |
|||
| Black | 0 |
1 |
- |
| Brown | 1 |
10 |
- |
| Red | 2 |
100 |
- |
| Orange | 3 |
1000 |
- |
| Yellow | 4 |
- |
- |
| Green | 5 |
- |
- |
| Blue | 6 |
- |
- |
| Purple | 7 |
- |
- |
| Grey | 8 |
- |
- |
| White | 9 |
- |
- |
| Black | - |
- |
±20 |
| Silver | - |
0,01 |
±10 |
| Gold | - |
0,1 |
±5 |
| Details of Values in µH |
|||
