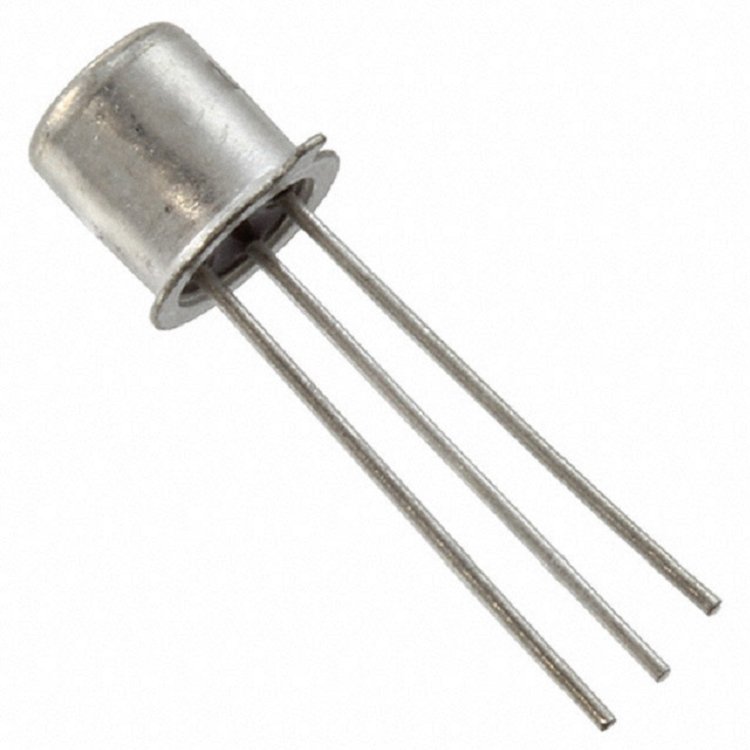

2N2222 (METAL)
50,99 TL
| Product Category: | Bipolar Transistors - BJT | |
| RoHS: |  Details |
|
| Package/Case: | TO-18 | |
| Transistor Polarity: | NPN | |
| Configuration: | Single | |
| Collector- Emitter Voltage VCEO Max: | 30 V | |
| Collector- Base Voltage VCBO: | 60 V | |
| Emitter- Base Voltage VEBO: | 5 V | |
| Collector-Emitter Saturation Voltage: | 1.6 V | |
| Maximum DC Collector Current: | 0.8 A | |
| Gain Bandwidth Product fT: | 250 MHz | |
| Maximum Operating Temperature: | + 150 C | |
| Series: | 2N2222 | |
| Continuous Collector Current: | 0.45 A | |
| DC Collector/Base Gain hFE Min: | 35 | |
| Height: | 5.33 mm | |
| Length: | 5.84 mm | |
| Minimum Operating Temperature: | - 65 C | |
| Pd - Power Dissipation: | 0.4 W | |
| Width: | 5.84 mm | |
