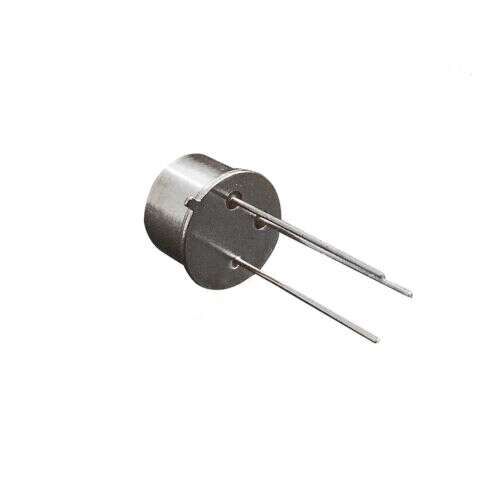

2N3553
79,58 TL
0 Puan / 0 Yorum
Type Designator: 2N3553
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 7 W
Maximum Collector-Base Voltage |Vcb|: 65 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 250 MHz
Collector Capacitance (Cc): 10 pF
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TO5
