2x100 Çift Sıra Erkek Pin Header 180° Au (087-2-100-0-F-XS0-1) ASL100G
108,45 TL
Kategori
Marka
Dorukan Stok No
DRK-7465-2
Fiyat
1,80 EUR + KDV
| Technical Specifications |
 |
|
| Insulating Shell: |
Thermoplastic, UL94V-0 |
| Contact Material: |
Copper alloy |
| Contact Surface |
|
| ASL100Z: |
Tin-plated |
| ASL100G: |
Gold-plated |
| Rated Current: |
3A |
| Rated Voltage: |
250V AC |
| Breakdown Voltage (1min.): |
500Vrms |
| Temperature Range: |
-40...+105°C |
| Short Term (10s): |
+260°C |
| Solderability: |
IEC 68-2-20 Tb |
|
|

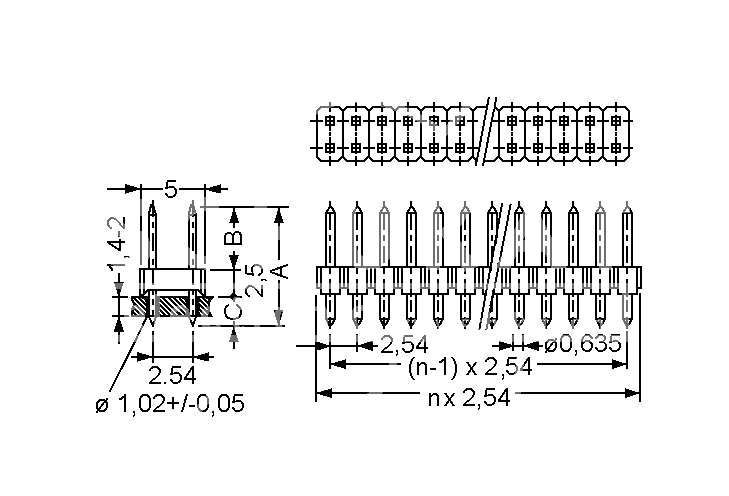

| Dimensions |
|
|
| Pin Length, Complete (A): |
12,6mm |
| Pin Length, Pin Area (B): |
6,8mm |
| Pin Area (C): |
3,3mm |
| Pin Cross Section: |
0,635x0,635mm |
