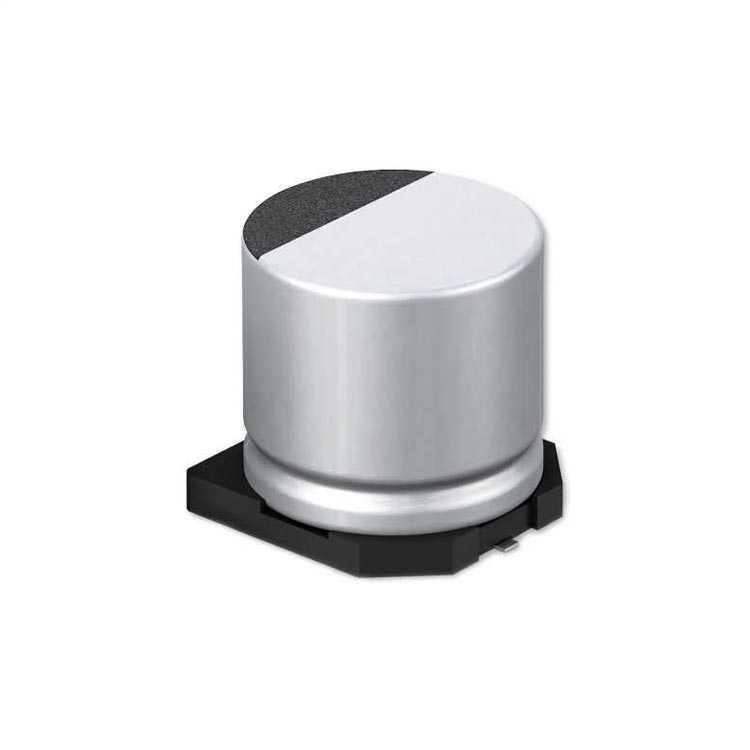

33uF 50V 8X10.2 SMD (ECEV1HA330P)
7,62 TL
| Categories | Capacitors | |
|---|---|---|
| Aluminum Electrolytic Capacitors | ||
| Manufacturer | Panasonic Electronic Components | |
| Series | VS | |
Packaging  |
Tape & Reel (TR) |
|
| Part Status | Obsolete | |
| Capacitance | 33µF | |
| Tolerance | ±20% | |
| Voltage - Rated | 50V | |
| ESR (Equivalent Series Resistance) | - | |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | |
| Operating Temperature | -40°C ~ 85°C | |
| Polarization | Polar | |
| Ratings | - | |
| Applications | General Purpose | |
| Ripple Current @ Low Frequency | 110mA @ 120Hz | |
| Lead Spacing | - | |
| Size / Dimension | 0.315" Dia (8.00mm) | |
| Height - Seated (Max) | 0.402" (10.20mm) | |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | |
| Mounting Type | Surface Mount | |
| Package / Case | Radial, Can - SMD |
