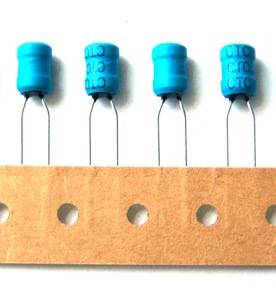

47uH 1100mA Kondansatör Tipi Bobin (CH6080470K RoHS)
10,61 TL
Marka
Dorukan Stok No
DRK-MAVİKUTU2-5
Fiyat
0,18 EUR + KDV
Havale
10,29 TL
(%3,00 havale indirimi)
| Features |
| • High-frequency ferrite core • Comparatively large rated current • Radial leads |
 |
| Technical Specifications |
|
|
| Temperature Range: |
-20...+80°C |
| Inductance (DL): |
±10% |
|
|
| Part Nr. |
L |
Q |
fQ |
f |
RDC |
IN |
| [µH] |
[MHz] |
[MHz] |
[W] |
[mA] |
||
| CH6080470K | 47 |
20 |
2,52 |
5,8 |
0,16 |
1100 |
| L = Inductance, Q = Quality Class, Min., fQ = Testing Frequency of L and Q, f = Resonance Frequency, Min., RDC = DC Resistance, Max., IN = Rated DC Current |
||||||
 |
||||||
