AC1040 RoHS (Current Transformer 1000/1 40A )
237,40 TL
Kategori
Marka
Dorukan Stok No
DRK-4524
Fiyat
4,00 EUR + KDV
Havale
230,28 TL
(%3,00 havale indirimi)

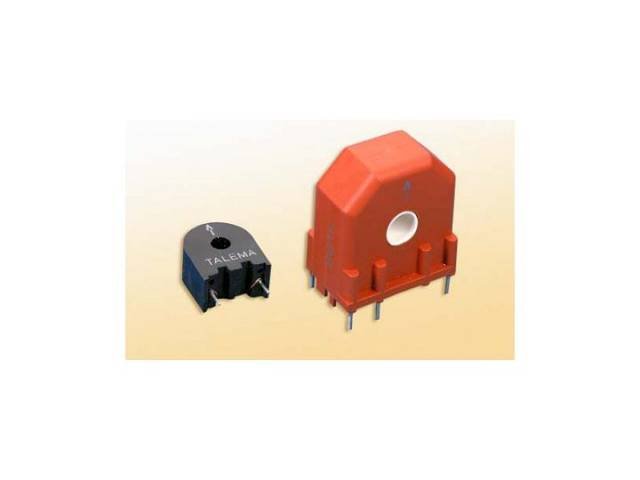

AC Series 50/60Hz Current Transformers
• For optimal PC board mounting
• Fully potted
• Centerhole for current-carrying line
• High output voltage
• Fully potted
• Centerhole for current-carrying line
• High output voltage
| Technical Specifications |
 | |
| Turns Ratio: |
1000:1 |
| Terminating Resistor: |
100W |
| |
| Electrical Specifications |
|
|
|
|
|
|
|
|
Part Nr. |
IP |
PRL100 |
UA100W |
UA500W |
UA2kW |
|
|
[A] |
[W] |
[V/A] |
[V/A] |
[V/A] |
|
AC1040 |
40 |
0,16 |
0,10 |
0,46 |
0.87 |
| IP = Nominal Input Current, PRL100 = Power Load Resistance, UA100W = Output Voltage per Input Current at 100W, UA500W = Output Voltage per Input Current at 500W, UA2kW = Output Voltage per Input Current at 2kW | |||||
|
| Dimensions |
| Part Nr. |
L |
ID |
H |
W |
C |
D |
| [mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] | |
| AC1040 | 34,9 | 14,6 | 34,9 | 14,3 | 25,40 | 10,16 |
