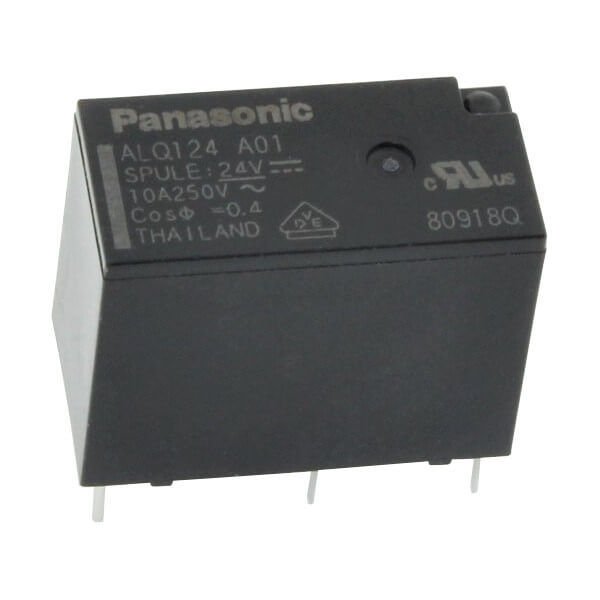

ALQ124
37,91 TL
| Coil Voltage | 24VDC | |
| Rohs | ROHS | |
| Packaging | TRAY | |
| Manufacturer | PANASONIC(APAC) | |
| Contact Form | SPDT (1 Form C) | |
| Coil Current | 16.70mA | |
| Operating Temperature | -40°C~+85°C | |
| Mounting Type | THT | |
| Coil Type | Non Latching | |
| Number of Pins | 5 Pin | |
| Contact Current (Max) | 10A | |
| Contact Voltage | 250VAC/30VDC | |
| Coil Resistance | 1.44K Ohms | |
| Coil Power | 400mW | |
| Relay Type | Relay Power Small | |
| Series | ALQ | |
| Contact Current (Nom) | 5A | |
| Length | 20.00mm | |
| Width | 10.00mm | |
| Height | 15.60mm |
