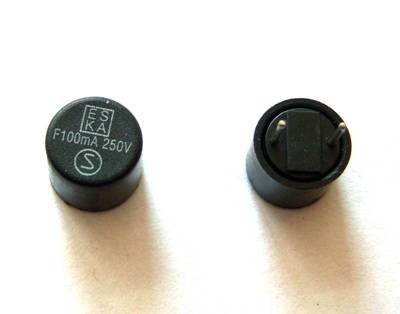

ESKA88500 RoHS (0.1A Quick-acting)
11,78 TL
Kategori
Marka
Dorukan Stok No
DRK-2259-3
Fiyat
0,20 EUR + KDV
Havale
11,43 TL
(%3,00 havale indirimi)
| Features |
| • Cylindrical version, 8,35mm diameter • Thermoplastic housing, temperature resistant, self-extinguishing • Short radial terminals (4,3mm, Ø 0,6mm), tinned • Solder or plug-in |
 |
| Technical Specifications |
|
|
| Rated Voltage: |
250V |
| Rated Breaking Capacity: |
35A |
| Fusing Time Limits |
|
| 50mA...6,3A |
|
| 1,5xIN,Min.: |
1h |
| 2,1xIN, Max.: |
30Min. |
| 2,75xIN: |
10ms...3s |
| 4xIN: |
3ms...300ms |
| 10xIN,Max.: |
20ms |
|
|
| Part Nr. |
Rated |
Voltage- |
Power |
Melting |
| Current |
Dropmax. |
Dissipationmax. |
Integral |
|
| [A] |
[V] |
[W] |
[A2s] |
|
| ESKA885007 | 0,1 |
0,52 |
0,12 |
0,003 |
