FSKF00.1 RoHS (0.1A Quick-acting)
15,99 TL
Kategori
Marka
Dorukan Stok No
DRK-2269
Fiyat
0,27 EUR + KDV
Havale
15,51 TL
(%3,00 havale indirimi)

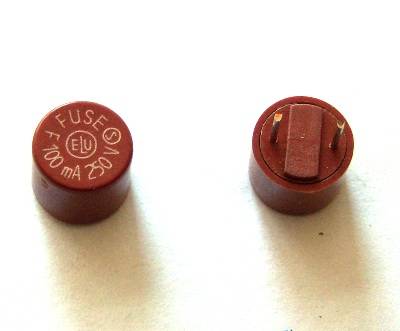

ELU Miniature Fuse
| Features |
| • Cylindrical version, 8,4mm diameter • Thermoplastic housing, temperature resistant, self-extinguishing • Short radial terminals (4,3mm, Ø 0,6mm), tinned • Solder or plug-in |
 |
| Technical Specifications |
| |
| Rated Voltage: |
250V |
| Rated Breaking Capacity | |
| Up To 3,15A (@ AC 250V): |
35A |
| 4A (@ AC 250V): |
40A |
| 5A (@ AC 250V): |
50A |
| Fusing Time Limits | |
| 50mA...6,3A | |
| 1,5xIN,Min: |
1h |
| 2,1xIN, Max.: |
30 Min |
| 2,75xIN: |
10ms...3s |
| 4xIN: |
3ms...300ms |
| 10xIN,Max.: |
20ms |
| |
| Part Nr. |
Rated |
Voltage- |
Power |
Melting |
| Current |
Dropmax. |
Lossmax.1) |
Integral | |
| [A] |
[mV] |
[mW] |
[A2s] | |
| FSKF00,050 | 0,05 |
820 |
95 |
0,0003 |
| FSKF00,1 | 0,1 |
550 |
155 |
0,0035 |
| FSKF00,16 | 0,16 |
460 |
210 |
0,011 |
| FSKF00,2 | 0,2 |
150 |
80 |
0,018 |
| FSKF00,25 | 0,25 |
140 |
90 |
0,036 |
| FSKF00,315 | 0,315 |
130 |
120 |
0,05 |
| FSKF00,4 | 0,4 |
120 |
140 |
0,10 |
| FSKF00,5 | 0,5 |
110 |
160 |
0,18 |
| FSKF00,63 | 0,63 |
100 |
180 |
0,33 |
| FSKF00,8 | 0,8 |
90 |
200 |
0,14 |
| FSKF01 | 1 |
80 |
220 |
0,24 |
| FSKF01,25 | 1,25 |
75 |
260 |
0,35 |
| FSKF01,6 | 1,6 |
70 |
350 |
0,6 |
| FSKF02 | 2 |
65 |
380 |
1,2 |
| FSKF02,5 | 2,5 |
60 |
420 |
2,0 |
| FSKF03,15 | 3,15 |
60 |
580 |
3,5 |
| FSKF04 | 4 |
60 |
700 |
6,2 |
| FSKF05 | 5 |
60 |
900 |
13 |
| 1) At 1.5x Rated Current | ||||
| ||||
