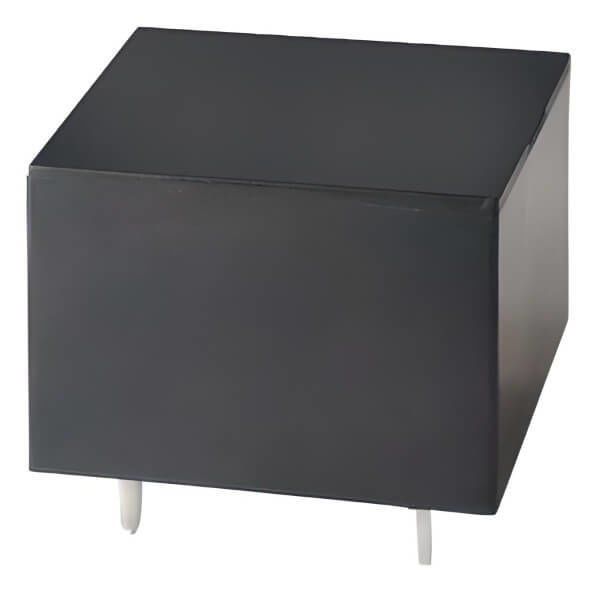

HJR-3FF-S-Z-4/12VDC
25,18 TL
| Manufacturer | TIANBO | |
| Relay Type | Relay Power | |
| Series | HJR-3FF | |
| Mounting Type | THT | |
| Contact Form | SPDT (1 Form C) | |
| Coil Type | Non Latching | |
| Contact Current (Nom) | 7A | |
| Contact Current (Max) | 10A | |
| Coil Voltage | 12VDC | |
| Coil Current | 30mA | |
| Contact Voltage | 240VAC | |
| Coil Resistance | 400 Ohms | |
| Coil Power | 360mW | |
| Operating Temperature | -40°C~+85°C | |
| Number of Pins | 5 Pin | |
| Length | 19.00mm | |
| Width | 15.40mm | |
| Height | 15.50m |
