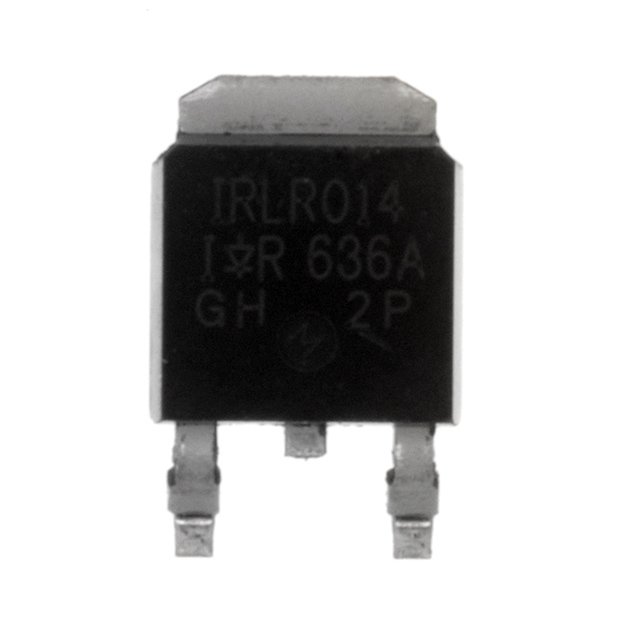

IRLR014 RoHS
58,45 TL
MOSFET N-Chan 60V7.7 Amp
__________________________
__________________________
| Product Category: | MOSFET | |
| Manufacturer: | Vishay | |
| RoHS: | No | |
| Technology: | Si | |
| Mounting Style: | SMD/SMT | |
| Package/Case: | TO-252AA-3 | |
| Number of Channels: | 1 Channel | |
| Transistor Polarity: | N-Channel | |
| Vds - Drain-Source Breakdown Voltage: | 60 V | |
| Id - Continuous Drain Current: | 7.7 A | |
| Rds On - Drain-Source Resistance: | 200 mOhms | |
| Vgs - Gate-Source Voltage: | 10 V | |
| Minimum Operating Temperature: | - 55 C | |
| Maximum Operating Temperature: | + 150 C | |
| Channel Mode: | Enhancement | |
| Brand: | Vishay / Siliconix | |
| Configuration: | Single | |
| Fall Time: | 26 ns | |
| Height: | 2.39 mm | |
| Length: | 6.73 mm | |
| Pd - Power Dissipation: | 2.5 W | |
| Rise Time: | 110 ns | |
| Transistor Type: | 1 N-Channel | |
| Typical Turn-Off Delay Time: | 17 ns | |
| Typical Turn-On Delay Time: | 9.3 ns |
