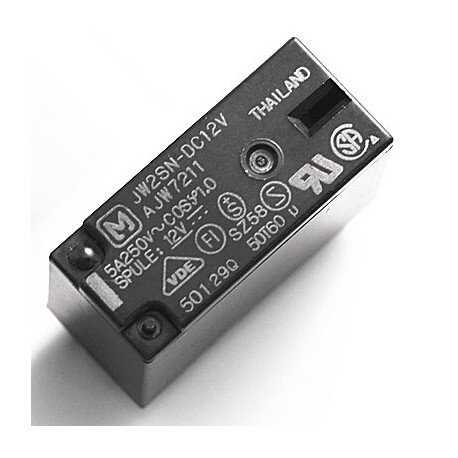

JW2SN-DC12V
101,83 TL
| Ürün Özellikleri: | ||
|---|---|---|
| Manufacturer | PANASONIC COMP. | |
| Relay Type | RELAY POWER | |
| Mounting Type | THT | |
| Contact Form | DPDT (2 Form C) | |
| Coil Type | Non Latching | |
| Contact Rating Current | 5A | |
| Coil Voltage | 12VDC | |
| Coil Current | 44mA | |
| Contact Voltage | 250VAC/30VDC | |
| Coil Resistance | 270R | |
| Coil Power | 530mW | |
| Operating Temperature | -40°C~+60°C | |
| Number of pins | 8PIN | |
| Dimensions (mm) WxLxH | 28.60x12.80x20.00 |  |
| Rohs | ROHS |
