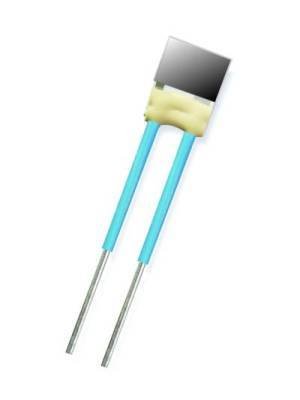

KFS140-D RoHS
814,01 TL
Kategori
Marka
Dorukan Stok No
DRK-2048
Fiyat
14,00 EUR + KDV
Havale
789,59 TL
(%3,00 havale indirimi)
Capacitive Polymer Humidity Sensor
Humidity range: 0 ... 100% relative humidity
max. Dew point: +85 °C
Temperature range: -30 .. +150 °C
Capacitance: 150 pF ±50 pF (at 23 °C and 30% r.H.)
Rate of rise: 0.25 pF / %r.H.
Tan d: < 0.01
Hysteresis: < 1.5% r.H.
Response time: < 12s
Frequence range: 1 ... 100 kHz
max. evaluation voltage: < 12 Vpp ~
Signal waveform: AC voltage (without DC-component)
Dimensions: 3.81 x 5.0 x 0.4 mm
Connection: PTFE isolated Cu/Ag-wires Ø 0.4 x 19.5 mm, RM 2.54 mm
max. Dew point: +85 °C
Temperature range: -30 .. +150 °C
Capacitance: 150 pF ±50 pF (at 23 °C and 30% r.H.)
Rate of rise: 0.25 pF / %r.H.
Tan d: < 0.01
Hysteresis: < 1.5% r.H.
Response time: < 12s
Frequence range: 1 ... 100 kHz
max. evaluation voltage: < 12 Vpp ~
Signal waveform: AC voltage (without DC-component)
Dimensions: 3.81 x 5.0 x 0.4 mm
Connection: PTFE isolated Cu/Ag-wires Ø 0.4 x 19.5 mm, RM 2.54 mm
