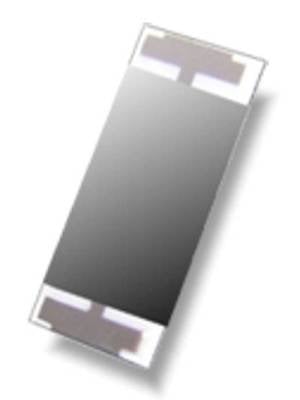

KFS140-MSMD RoHS
708,44 TL
0 Puan / 0 Yorum
Kategori
Marka
Dorukan Stok No
DRK-2046-5
Fiyat
11,50 EUR + KDV
Havale
687,19 TL
(%3,00 havale indirimi)
Capacitive Polymer Humidity Sensor
Humidity range: 0 ... 100% r.H. (max. DP = 80 °C)
Temperature range: -50 ... +150 °C
Capacitance: 180 pF ±50 pF (at 23 °C) and 30% r.H.)
Gain value: 0.3 pF / % r.H.
Tan d: < 0.01
Hysteresis: < 1.5% r.H.
Response time: < 6s
Frequence range: 1 ... 100 kHz
max. evaluation voltage: < 12 Vpp ~
Signal waveform: AC voltage (without DC-component)
Dimensions: 2.0 x 4.0 x 0.38 mm
Connection: SMD, for automatic equipment
Temperature range: -50 ... +150 °C
Capacitance: 180 pF ±50 pF (at 23 °C) and 30% r.H.)
Gain value: 0.3 pF / % r.H.
Tan d: < 0.01
Hysteresis: < 1.5% r.H.
Response time: < 6s
Frequence range: 1 ... 100 kHz
max. evaluation voltage: < 12 Vpp ~
Signal waveform: AC voltage (without DC-component)
Dimensions: 2.0 x 4.0 x 0.38 mm
Connection: SMD, for automatic equipment
Bu ürüne ilk yorumu siz yapın!
