LF412C SMD RoHS
52,74 TL
Kategori
Marka
Dorukan Stok No
DRK-2120-10
Fiyat
0,90 EUR + KDV
| RoHS: |  Details |
|
| Mounting Style: | SMD/SMT | |

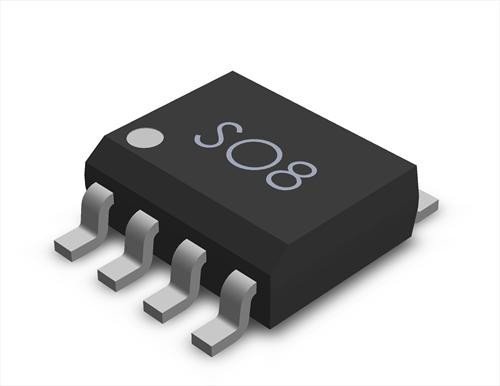

| Package/Case: | SOIC-8 | |
| Supply Voltage - Max: | 36 V | |
| Number of Channels: | 2 Channel | |
| GBP - Gain Bandwidth Product: | 3 MHz | |
| SR - Slew Rate: | 13 V/us | |
| CMRR - Common Mode Rejection Ratio: | 70 dB to 100 dB | |
| Ib - Input Bias Current: | 200 pA | |
| Vos - Input Offset Voltage: | 3 mV | |
| Supply Voltage - Min: | 7 V | |
| Operating Supply Current: | 2.25 mA | |
| Maximum Operating Temperature: | + 85 C | |
| Minimum Operating Temperature: | - 40 C | |
| Shutdown: | No Shutdown | |
| Series: | LF412 | |
| Packaging: | Reel | |
| Amplifier Type: | High Speed Amplifier |
