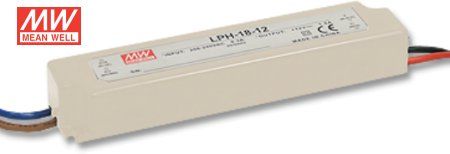

LPH18-12 (12V-1.5A)
511,33 TL
Kategori
Marka
Dorukan Stok No
AJMXCKM7
Fiyat
10,00 USD + KDV
Havale
495,99 TL
(%3,00 havale indirimi)
General Specifications
| Input Voltage | 180 ~ 264Vac |
|---|---|
| Input Frequency | 47 ~ 63Hz |
| Input Current | 0.3A/230Vac |
| Inrush Current | 50A/230Vac cold start |
| Leakage Current | 0.25mA/240Vac |
| Voltage Tolerance | ±3.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±2.0% |
| Set Up, Rise Time | 1500ms, 30ms/230Vac |
| Hold Time | 50ms/230Vac at full load |
| Over Current Protection | Above 105% rated output power |
| Hiccup mode, recovers automatically after fault condition is removed | |
| Over Voltage Protection | Shut off o/p voltage, clamping by zener diode |
| Over Temperature Protection | Tj 170°C typically (U1) Detect on main control ISC |
| Hiccup mode, recovers automatically after fault condition is removed | |
| Working Temperature | -30°C ~ +70°C (Refer to output derating curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Storage Temperature, Humidity | -40°C ~ +80°C, 10 ~ 95% RH |
| Temperature Coefficient | ±0.03%/°C (0 ~ 50°C) |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
| Withstand Voltage | I/P-O/P:3KVAC |
| Isolation Resistance | I/P-O/P: >100M Ohms/500VDC 25°C 70% RH |
| Safety Standards | TUV EN60950-1 approved; design refers to UL1310 Class 2,EN61347-2-13, CAN/CSAC22.2 No. 223-M91 |
| EMC | Compliance to EN55022 (CISPR22) ClassB, EN61000-3-2 Class A; EN61000-3-3; ENV50204; |
| EN61000-4-2,3,4,5,6,8,11; EN50204, Light industry level, criteria A | |
| MTBF | 1200.6K hrs min. MIL-HDBK-217F (25°C) |
| Dimensions | 140 x 30 x 22mm |
