MPS8598 RoHS
23,36 TL
0 Puan / 0 Yorum
| Manufacturer | Fairchild/ON Semiconductor | |
|---|---|---|
| Series | - | |
Packaging  |
Bulk |
|
| Part Status | Obsolete | |
| Transistor Type | PNP | |
| Current - Collector (Ic) (Max) | 100mA | |
| Voltage - Collector Emitter Breakdown (Max) | 60V | |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 100mA | |
| Current - Collector Cutoff (Max) | 100nA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V | |
| Power - Max | 625mW | |
| Frequency - Transition | 150MHz | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

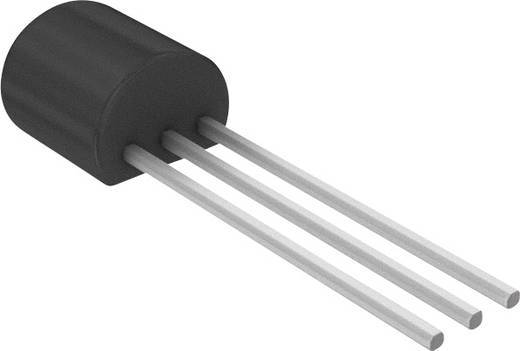

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Supplier Device Package | TO-92-3 |
