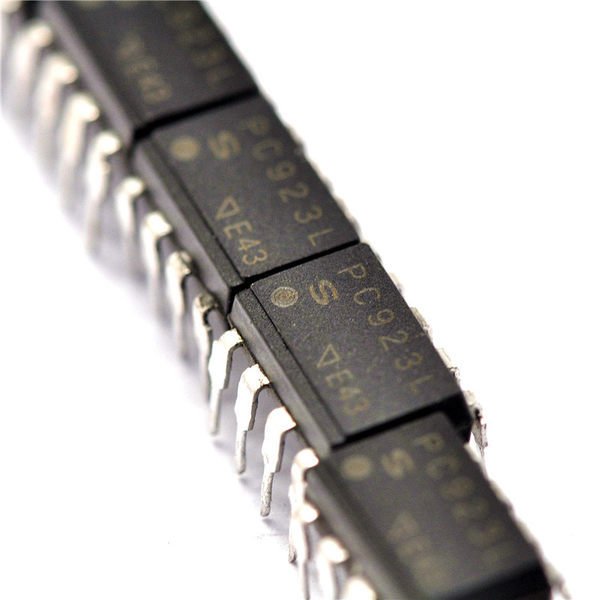

PC923L RoHS
134,94 TL
Marka
Dorukan Stok No
DRK-1511-A
Fiyat
2,65 USD + KDV
OPTOISO 5KV GATE DRIVER
____________________________
____________________________
| Categories | Isolators | |
|---|---|---|
| Isolators - Gate Drivers | ||
| Manufacturer |
Sharp Microelectronics |
|
| Series | OPIC™ | |
| Part Status | Obsolete | |
| Technology | Optical Coupling | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Common Mode Transient Immunity (Min) | 15kV/µs | |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns | |
| Pulse Width Distortion (Max) | - | |
| Rise / Fall Time (Typ) | 200ns, 200ns | |
| Current - Output High, Low | - | |
| Current - Peak Output | 600mA | |
| Voltage - Forward (Vf) (Typ) | 1.6V | |
| Current - DC Forward (If) (Max) | 20mA | |
| Voltage - Supply | 15 V ~ 30 V | |
| Operating Temperature | -40°C ~ 85°C |
