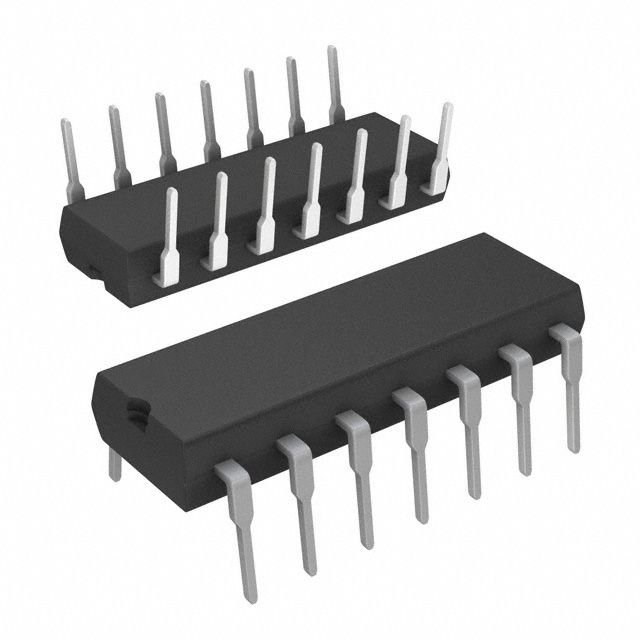

PIC16F1509-I/P ( 10 Adet Fiyatı ) Teslim Süresi 10 Gün
1.110,14 TL
Marka
Dorukan Stok No
ÖNSİPARİŞ-75(Kopya)
Fiyat
22,00 USD + KDV
| Datasheets | PIC16(L)F1508,09 Datasheet Configurable Logic Cell Tip N' Tricks New Peripherals Tips N' Tricks PIC12(L)F1501, PIC16(L)F150x Brief PIC16F1508, 1509 Errata |
|---|---|
| Design Resources | Development Tool Selector |
| PCN Design/Specification | PIC16(L)F1508/9 Datasheet 20/Jun/2013 PIC16(L)F1508/9 Datasheet Update 19/Aug/2013 PIC16(L)F1508/9 Datasheet Update 24/Apr/2014 Copper Bond Wire 07/Apr/2015 PIC16(L)F1508/9 Datasheet Rev 30/Oct/2015 |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 |
EDA / CAD Models  |
Download from Accelerated Designs |
| Standard Package |
22 |
| Category |
Integrated Circuits (ICs) |
| Family |
Embedded - Microcontrollers |
| Series | PIC® XLP™ 16F |
| Packaging |
Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, LIN, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3 V ~ 5.5 V |
| Data Converters | A/D 12x10b, D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Online Catalog | PIC® XLP16F/LF |
| Kits | |
| For Use With | |
| Other Names | PIC16F1509IP |
